GtkTextView 控件

最后修改于 2023 年 10 月 18 日

在本 GTK+ 编程教程中，我们将使用 GtkTextView 控件。

GtkTextView 控件用于显示和编辑多行文本。GtkTextView 控件也具有 MVC 设计。GtkTextView 代表视图组件，而 GtkTextBuffer 代表模型组件。GtkTextBuffer 用于操作文本数据。GtkTextTag 是可以应用于文本的属性。GtkTextIter 表示文本中两个字符之间的位置。所有文本操作都使用文本迭代器完成。

简单示例

在我们的第一个例子中，我们展示了 GtkTextView 的一些功能。我们展示了如何将各种文本标签应用于文本数据。

simpletextview.c
#include <gtk/gtk.h>

int main(int argc, char *argv[]) {

  GtkWidget *window;
  GtkWidget *view;
  GtkWidget *vbox;

  GtkTextBuffer *buffer;
  GtkTextIter start, end;
  GtkTextIter iter;

  gtk_init(&argc, &argv);

  window = gtk_window_new(GTK_WINDOW_TOPLEVEL);
  gtk_window_set_position(GTK_WINDOW(window), GTK_WIN_POS_CENTER);
  gtk_window_set_default_size(GTK_WINDOW(window), 300, 200);
  gtk_window_set_title(GTK_WINDOW(window), "GtkTextView");

  vbox = gtk_vbox_new(FALSE, 0);
  view = gtk_text_view_new();
  gtk_box_pack_start(GTK_BOX(vbox), view, TRUE, TRUE, 0);

  buffer = gtk_text_view_get_buffer(GTK_TEXT_VIEW(view));

  gtk_text_buffer_create_tag(buffer, "gap",
        "pixels_above_lines", 30, NULL);

  gtk_text_buffer_create_tag(buffer, "lmarg",
      "left_margin", 5, NULL);
  gtk_text_buffer_create_tag(buffer, "blue_fg",
      "foreground", "blue", NULL);
  gtk_text_buffer_create_tag(buffer, "gray_bg",
      "background", "gray", NULL);
  gtk_text_buffer_create_tag(buffer, "italic",
      "style", PANGO_STYLE_ITALIC, NULL);
  gtk_text_buffer_create_tag(buffer, "bold",
      "weight", PANGO_WEIGHT_BOLD, NULL);

  gtk_text_buffer_get_iter_at_offset(buffer, &iter, 0);

  gtk_text_buffer_insert(buffer, &iter, "Plain text\n", -1);
  gtk_text_buffer_insert_with_tags_by_name(buffer, &iter,
        "Colored Text\n", -1, "blue_fg", "lmarg",  NULL);
  gtk_text_buffer_insert_with_tags_by_name (buffer, &iter,
        "Text with colored background\n", -1, "lmarg", "gray_bg", NULL);

  gtk_text_buffer_insert_with_tags_by_name (buffer, &iter,
        "Text in italics\n", -1, "italic", "lmarg",  NULL);

  gtk_text_buffer_insert_with_tags_by_name (buffer, &iter,
        "Bold text\n", -1, "bold", "lmarg",  NULL);

  gtk_container_add(GTK_CONTAINER(window), vbox);

  g_signal_connect(G_OBJECT(window), "destroy",
        G_CALLBACK(gtk_main_quit), NULL);

  gtk_widget_show_all(window);

  gtk_main();

  return 0;
}

该示例显示了一些应用了不同 GtkTextTags 的文本。

view = gtk_text_view_new();

gtk_text_view_new 函数创建一个新的 GtkTextView 控件。

gtk_text_buffer_create_tag(buffer, "blue_fg",
    "foreground", "blue", NULL);

gtk_text_buffer_create_tag 函数创建一个标签并将其添加到缓冲区的标签表中。第二个参数是标签名称。该标签将文本颜色更改为蓝色。

gtk_text_buffer_insert_with_tags_by_name(buffer, &iter,
      "Colored Text\n", -1, "blue_fg", "lmarg",  NULL);

gtk_text_buffer_insert_with_tags_by_name 函数使用 blue_fg 和 lmarg 文本标签插入文本。标签通过其名称被识别。

GtkTextView

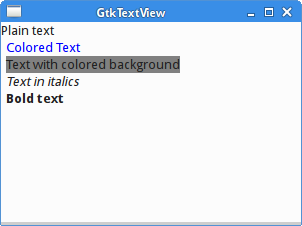

图：GtkTextView

行和列

以下示例显示文本光标的当前行和列。

linescols.c
#include <gtk/gtk.h>

update_statusbar(GtkTextBuffer *buffer,
                  GtkStatusbar  *statusbar) {
  gchar *msg;
  gint row, col;
  GtkTextIter iter;

  gtk_statusbar_pop(statusbar, 0);

  gtk_text_buffer_get_iter_at_mark(buffer,
      &iter, gtk_text_buffer_get_insert(buffer));

  row = gtk_text_iter_get_line(&iter);
  col = gtk_text_iter_get_line_offset(&iter);

  msg = g_strdup_printf("Col: %d Ln: %d", col+1, row+1);

  gtk_statusbar_push(statusbar, 0, msg);

  g_free(msg);
}

void mark_set_callback(GtkTextBuffer *buffer,
    const GtkTextIter *new_location, GtkTextMark *mark, gpointer data) {

  update_statusbar(buffer, GTK_STATUSBAR(data));
}

int main(int argc, char *argv[]) {

  GtkWidget *window;
  GtkWidget *vbox;

  GtkWidget *toolbar;
  GtkWidget *view;
  GtkWidget *statusbar;
  GtkToolItem *exit;
  GtkTextBuffer *buffer;

  gtk_init(&argc, &argv);

  window = gtk_window_new(GTK_WINDOW_TOPLEVEL);
  gtk_window_set_position(GTK_WINDOW(window), GTK_WIN_POS_CENTER);
  gtk_window_set_default_size(GTK_WINDOW(window), 350, 300);
  gtk_window_set_title(GTK_WINDOW(window), "Lines & columns");

  vbox = gtk_vbox_new(FALSE, 0);
  gtk_container_add(GTK_CONTAINER(window), vbox);

  toolbar = gtk_toolbar_new();
  gtk_toolbar_set_style(GTK_TOOLBAR(toolbar), GTK_TOOLBAR_ICONS);

  exit = gtk_tool_button_new_from_stock(GTK_STOCK_QUIT);
  gtk_toolbar_insert(GTK_TOOLBAR(toolbar), exit, -1);

  gtk_box_pack_start(GTK_BOX(vbox), toolbar, FALSE, FALSE, 5);

  view = gtk_text_view_new();
  gtk_text_view_set_wrap_mode(GTK_TEXT_VIEW(view), GTK_WRAP_WORD);
  gtk_box_pack_start(GTK_BOX(vbox), view, TRUE, TRUE, 0);
  gtk_widget_grab_focus(view);

  buffer = gtk_text_view_get_buffer(GTK_TEXT_VIEW(view));

  statusbar = gtk_statusbar_new();
  gtk_box_pack_start(GTK_BOX(vbox), statusbar, FALSE, FALSE, 0);

  g_signal_connect(G_OBJECT(exit), "clicked",
        G_CALLBACK(gtk_main_quit), NULL);

  g_signal_connect(buffer, "changed",
        G_CALLBACK(update_statusbar), statusbar);

  g_signal_connect_object(buffer, "mark_set",
        G_CALLBACK(mark_set_callback), statusbar, 0);

  g_signal_connect_swapped(G_OBJECT(window), "destroy",
        G_CALLBACK(gtk_main_quit), NULL);

  gtk_widget_show_all(window);

  update_statusbar(buffer, GTK_STATUSBAR(statusbar));

  gtk_main();

  return 0;
}

在此代码示例中，我们在状态栏中显示文本光标的当前位置。

g_signal_connect(buffer, "changed",
      G_CALLBACK(update_statusbar), statusbar);

当我们更改文本时，我们调用 update_statusbar 处理程序。

g_signal_connect_object(buffer, "mark_set",
      G_CALLBACK(mark_set_callback), statusbar, 0);

当光标移动时，将发出 mark_set 信号。

gtk_statusbar_pop(statusbar, 0);

此代码行从状态栏中清除上下文 ID 为 0 的消息。

gtk_text_buffer_get_iter_at_mark(buffer,
    &iter, gtk_text_buffer_get_insert(buffer));

row = gtk_text_iter_get_line(&iter);
col = gtk_text_iter_get_line_offset(&iter);

这些行确定当前的行和列。

msg = g_strdup_printf("Col %d Ln %d", col+1, row+1);

g_strdup_printf 用于构建要在状态栏上显示的文本。

gtk_statusbar_push(statusbar, 0, msg);

我们使用 gtk_statusbar_push 函数在状态栏上显示文本。

Lines and columns

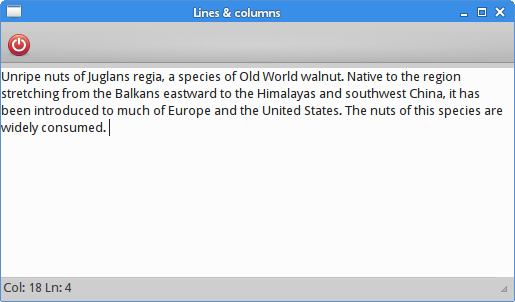

图：行和列

搜索和高亮显示

在下一个示例中，我们在 GtkTextBuffer 中进行一些搜索；我们在文本缓冲区中高亮显示一些文本模式。

search.c
#include <gtk/gtk.h>
#include <gdk/gdkkeysyms.h>

gboolean key_pressed(GtkWidget *window,
    GdkEventKey* event, GtkTextBuffer *buffer) {

  GtkTextIter start_sel, end_sel;
  GtkTextIter start_find, end_find;
  GtkTextIter start_match, end_match;
  gboolean selected;
  gchar *text;

  if ((event->type == GDK_KEY_PRESS) &&
     (event->state & GDK_CONTROL_MASK)) {

    switch (event->keyval) {

      case GDK_m :
        selected = gtk_text_buffer_get_selection_bounds(buffer,
            &start_sel, &end_sel);
      if (selected) {
        gtk_text_buffer_get_start_iter(buffer, &start_find);
        gtk_text_buffer_get_end_iter(buffer, &end_find);

        gtk_text_buffer_remove_tag_by_name(buffer, "gray_bg",
            &start_find, &end_find);
        text = (gchar *) gtk_text_buffer_get_text(buffer, &start_sel,
            &end_sel, FALSE);

        while (gtk_text_iter_forward_search(&start_find, text,
                GTK_TEXT_SEARCH_TEXT_ONLY |
                GTK_TEXT_SEARCH_VISIBLE_ONLY,
                &start_match, &end_match, NULL)) {

          gtk_text_buffer_apply_tag_by_name(buffer, "gray_bg",
              &start_match, &end_match);
          gint offset = gtk_text_iter_get_offset(&end_match);
          gtk_text_buffer_get_iter_at_offset(buffer,
              &start_find, offset);
        }

        g_free(text);
      }

      break;

      case GDK_r:
        gtk_text_buffer_get_start_iter(buffer, &start_find);
        gtk_text_buffer_get_end_iter(buffer, &end_find);

        gtk_text_buffer_remove_tag_by_name(buffer, "gray_bg",
            &start_find, &end_find);
      break;
    }
  }

  return FALSE;
}

int main(int argc, gchar *argv[]) {

  GtkWidget *window;
  GtkWidget *view;
  GtkWidget *vbox;

  GtkTextBuffer *buffer;
  GtkTextIter start, end;
  GtkTextIter iter;

  gtk_init(&argc, &argv);

  window = gtk_window_new(GTK_WINDOW_TOPLEVEL);
  gtk_window_set_position(GTK_WINDOW(window), GTK_WIN_POS_CENTER);
  gtk_window_set_default_size(GTK_WINDOW(window), 350, 300);
  gtk_window_set_title(GTK_WINDOW(window), "Search & highlight");
  GTK_WINDOW(window)->allow_shrink = TRUE;

  vbox = gtk_vbox_new(FALSE, 0);
  view = gtk_text_view_new();
  gtk_widget_add_events(view, GDK_BUTTON_PRESS_MASK);
  gtk_box_pack_start(GTK_BOX(vbox), view, TRUE, TRUE, 0);

  buffer = gtk_text_view_get_buffer(GTK_TEXT_VIEW(view));
  gtk_text_buffer_create_tag(buffer, "gray_bg",
      "background", "lightgray", NULL);
  gtk_container_add(GTK_CONTAINER(window), vbox);

  g_signal_connect(G_OBJECT(window), "destroy",
        G_CALLBACK(gtk_main_quit), NULL);

  g_signal_connect(G_OBJECT(window), "key-press-event",
        G_CALLBACK(key_pressed), buffer);

  gtk_widget_show_all(window);

  gtk_main();

  return 0;
}

在我们的代码示例中，我们使用键盘快捷键。Ctrl+M 快捷键高亮显示当前选定文本的所有出现。 Ctrl+R 从文本中删除高亮显示。

gtk_text_buffer_create_tag(buffer, "gray_bg",
    "background", "lightgray", NULL);

这是我们在示例中使用的 GtkTextTag。该标签使文本的背景变为灰色。

selected = gtk_text_buffer_get_selection_bounds(buffer,
    &start_sel, &end_sel);

使用 gtk_text_buffer_get_selection_bounds 函数，我们获取所选文本的开始和结束位置。

gtk_text_buffer_get_start_iter(buffer, &start_find);
gtk_text_buffer_get_end_iter(buffer, &end_find);

我们获取文本缓冲区的第一个和最后一个位置。

gtk_text_buffer_remove_tag_by_name(buffer, "gray_bg",
    &start_find, &end_find);

使用 gtk_text_buffer_remove_tag_by_name 函数，我们删除任何先前的文本标签。

text = (gchar *) gtk_text_buffer_get_text(buffer, &start_sel,
    &end_sel, FALSE);

我们获取选定的文本。这是我们要搜索的文本。

while (gtk_text_iter_forward_search(&start_find, text,
        GTK_TEXT_SEARCH_TEXT_ONLY |
        GTK_TEXT_SEARCH_VISIBLE_ONLY,
        &start_match, &end_match, NULL)) {

    gtk_text_buffer_apply_tag_by_name(buffer, "gray_bg",
        &start_match, &end_match);
    gint offset = gtk_text_iter_get_offset(&end_match);
    gtk_text_buffer_get_iter_at_offset(buffer,
        &start_find, offset);
}

此代码搜索所选文本的所有出现。如果我们找到任何匹配项，我们应用文本标签。匹配后，单词的结束点成为下一次搜索的起点。

Search & Highlight
图：搜索和高亮显示

在本章中，我们介绍了 GtkTextView 控件。
